# START / END nodes

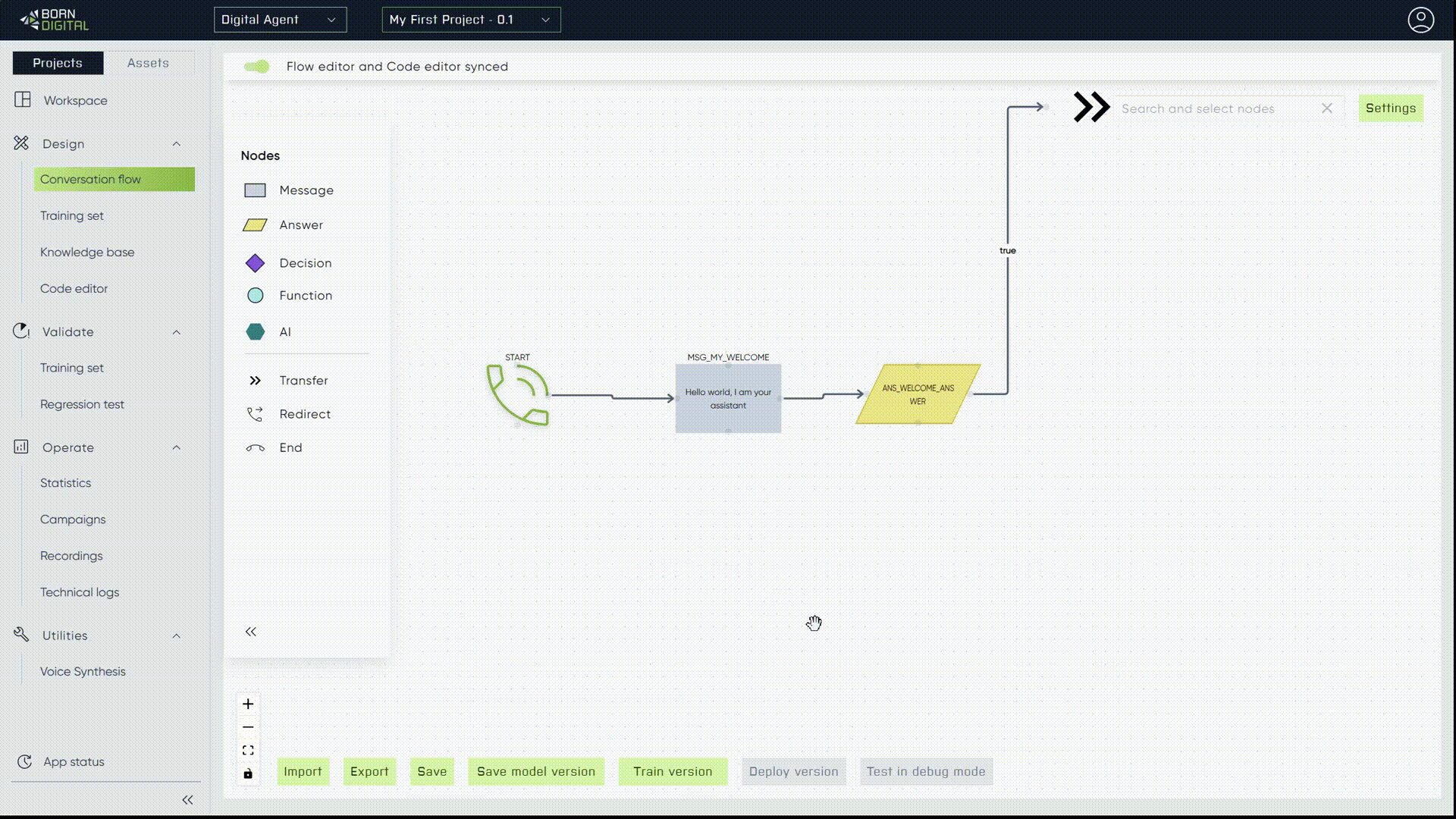

Every conversation begins in the START node and ends in an End node, a Transfer node or a Redirect node.

## START node

Every flow has exactly one **START** node – it is on the canvas of every new project. Every conversation begins here. You can't add another START node, rename it, copy it or connect another node to it.

<figure><img src="https://4261467870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6iQTvxgRZRwPS1NgIGEb%2Fuploads%2F5Zf50b8RLZ0nt0e20o5v%2Fnodes2-start-editor.png?alt=media&amp;token=aca25fb1-aa73-4b86-8a8e-3432a17c3673" alt="The START node editor"><figcaption><p>The START node with routing for unsuccessful outbound calls</p></figcaption></figure>

* **Process** – the name of this process in reporting, for example *Invoice support*.
* **Status** – a label for reporting that marks the conversation as started.
* **Tools** and **Variables** – run tools and set variables at the very beginning, for example to load data about the customer. See [The node editor](https://docs.borndigital.ai/digital-agent/conversation-flow/nodes-explained.md#the-node-editor).
* **Call unsuccessful** – what to do when an outbound call does not connect (see below).
* **Next** – the first node of the conversation. Click **⋯** for **Reuse utterance** (pass the customer's first message on to the next Answer node) and **Dynamic** (take the node's name from a variable).

### Call unsuccessful

For **outbound calls**, decide what happens when the customer can't be reached.

* With **End process** on (default), every unsuccessful call ends with the **Status** you enter – by default *Outbound call not connected*.
* Turn **End process** off to route the outcomes yourself. Click **Add** and choose **Busy**, **No answer**, **Disconnected**, **Error** or **Wrong number**, then pick the node for each – for example a Function node that schedules a new attempt. Every other outcome goes to **Other**.

{% hint style="info" %}
A conversation always starts in START. Other nodes can also be entered mid-conversation if **Allow jumping** is turned on in the project settings.
{% endhint %}

***

## END node

An End node ends the conversation: it hangs up the call or closes the chat and hides the chat input field. Add one from the Nodes panel or from a node's **Next** field. A flow can have as many End nodes as you need – one for each way a conversation can finish.

<figure><img src="https://4261467870-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6iQTvxgRZRwPS1NgIGEb%2Fuploads%2FP1VttLOApM31vUrHWKuH%2Fnodes2-end-editor.png?alt=media&amp;token=2df5289f-84d8-4e3a-91e2-c1f64ed9f44f" alt="The End node editor"><figcaption><p>An End node</p></figcaption></figure>

* **Status** – a label for reporting, for example *Resolved by bot* or *Customer not verified*, so you can see in analytics how conversations ended.
* **Variables** – values set at the end of the conversation.

{% hint style="info" %}
Answer nodes have **Conversation ends** turned on by default. When the customer hangs up while the agent waits for input, the conversation goes to an End node called `END_HANGUP`, which the editor creates for you.
{% endhint %}

{% hint style="info" %}
A conversation can also finish in a [Transfer node](https://docs.borndigital.ai/digital-agent/conversation-flow/nodes-explained/transfer-node.md) (it continues in another project) or a [Redirect node](https://docs.borndigital.ai/digital-agent/conversation-flow/nodes-explained/redirect-node.md) (it continues with a human).
{% endhint %}
